Product description
The grab bucket overhead crane is a kind of heavy duty overhead crane to grab and load coal, ash and other bulk goods and materials. The grab bridge crane consists of Main Girder, End Carriage, Lifting Trolley, grab bucket and Electrical Parts. Generally, the power supply system for trolley and crane are festoon system and bus bar system. Trash grab overhead crane is responsible for garbage feeding, handling, mixing, picking and weighting.
This grab overhead crane is widely used in freight port, river wharf, power plants, concrete mixing station, industrial and mining enterprises. Steel overhead crane with grab is widely applicable to the hoisting operation of ordinary goods in factories and mines, and is equipped with a special hanger for special operations. Hengyuan Group has been devoted to the production of grab overhead crane for many years, and our machine is widely used in power plant, freight yard, workshop, wharf and so on.
Grab overhead crane is mainly composed of a box girder, grab trolley, trolley traveling mechanism, operation cab and electric control system. The lifting device is able to grab all kinds of bulk materials. In addition to different hoisting mechanism, the structure of grab overhead crane and the hook bridge crane is basically the same.
Heavy Duty and High Efficient
Suitable for any environment ( High Temperature, Explosion Proof and so on)
Long Life Span: 30-50years
Easy for Installation and maintenance
Technical Data |
Lifting Capacity |
t |
1-50ton |
Lifting Height |
m |
3-26m |
Span |
m |
10.5-31.5 |
Duty Classification |
|
A5-A8 |
Speed |
Trolley |
Hoisting |
m/min |
40.1-48.6 |
Travelling |
43.2-45.6 |
Bridge travelling |
76-93.7 |
Weight |
Trolley |
t |
5.2-20.4 |
Total weight |
Indoor |
19.9-75.6 |
Outdoor |
20.7-76.8 |
Max. wheel pressure |
Indoor |
KN |
81-312 |
Outdoor |
86-316 |
Grab |
Model |
u |
155 |
151 |
152 |
147 |
148 |
143 |
144 |
Type |
|
Light |
Medium |
Heavy |
Super heavy |
Volume |
m³ |
10 |
6 |
4 |
3 |
Density |
t/m³ |
≤1 |
>1-1.7 |
>1.7-2.5 |
>2.5-3.3 |
Steel track recommende |
|
43kg/m |
QU70 |
Power source |
3-phase A.C 380V 50HZ (As your demand) |
End beam
Buffer motor drive
With roller bearings and
permanent iubncation
Main beam
with strong box type and standard
camber ,there will have
reinforcement plate inside
Hydraulic Grab
Strong suction, simple
operation, strong stability,
low energy consumption
Crane Trolley
Using thickened steel, it is
not easy to break and deform,
and it has various forms and is
suitable for many occasions
Wire rope
Heavy bearing, strong and
durable, not easy to rotate,
not easy to break

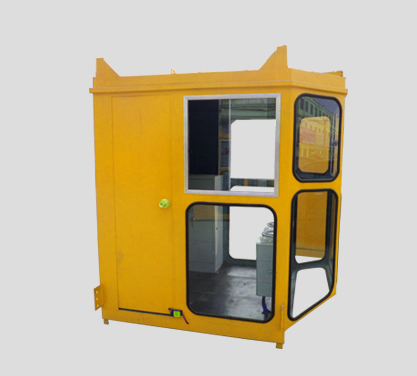

Crane cabin
1.cloth and open type
2.air-conditioning provided
3.interlocked circuit breaker provided
