Electromagnetic Overhead Crane

Capacity:3.2-32t
Span:10.5-31.5m
Lifting height:1-20m
Lifting speed:3-8m/min
Working class:ISOA3-A5/FEM1AM-FEM2M

send email

Get a quote

Share With:

Product description

The difference of electromagnetic overhead crane and general overhead crane lies the hook assembly, and it adopts magnetic disk to attract steel or other materials instead of traditional hooks. It is a special overhead travelling crane with electromagnetic disk, special used in metallurgy and mechanism factory load and unload metallic materials such as steel plate, scrap iron, and so on. It is an heavy duty crane with working grade A6~A8, cabin control, crane weight including electromagnetic disk dead weight.

Remote control or cabin or both Crane girder: The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway. Primer and finishing paint color can be adjusted according to your demand. The working temperature is between minus 25 degrees to 40 degrees, and the working class is generally A6. Hengyuan Group also offer semi gantry crane, electric hoist, container crane for sale, portable jib crane for sale etc. Contac us at any time for a free quotation.

Features and Advantages

Overload protection and main lifting motor with thermal protection.

Hooks with latch, rubber buffers and protective earthing.

Crane switch, travel end switch and emergency switch can stop all movement when any dangerous happened.

All crane must be assembled and tested before leaving factory and offer the certification of test.

Product Parameter

Technical Data
Capacity			t	16/3.2-32/5
Working duty				A6
Span			m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Max. Lifting Height			m	16
Speed	Hoisting	Electromagetic	m/min	19.9
	Crab travelling			39.5
	Trolley travelling			115.6						116.8
Motor	Hoisting	Electromagetic	Type kW	YZR200L-6/22
	Crane travelling			YZR112M-6/15
	Trolley travelling			YZR132M1-6/2X5.5					YZR160M2-6/2X7.5
Weight	Crane		t	2.384
	Total Weight			13.36	14.98	16.92	19.75	22.28	26.65	29.97	32.97
Max. wheel load			kN	74.5	80	86.5	94	101.5	113	121.5	128.5
Electro-magnetic disk	Model			MW5-90L
	Attracting weight		kg	4200
	Dead weight			800
Diameter			mm	900
Steel track Recommended				38kg/m
Power source				3-phase A.c 50Hz 380V or on your request

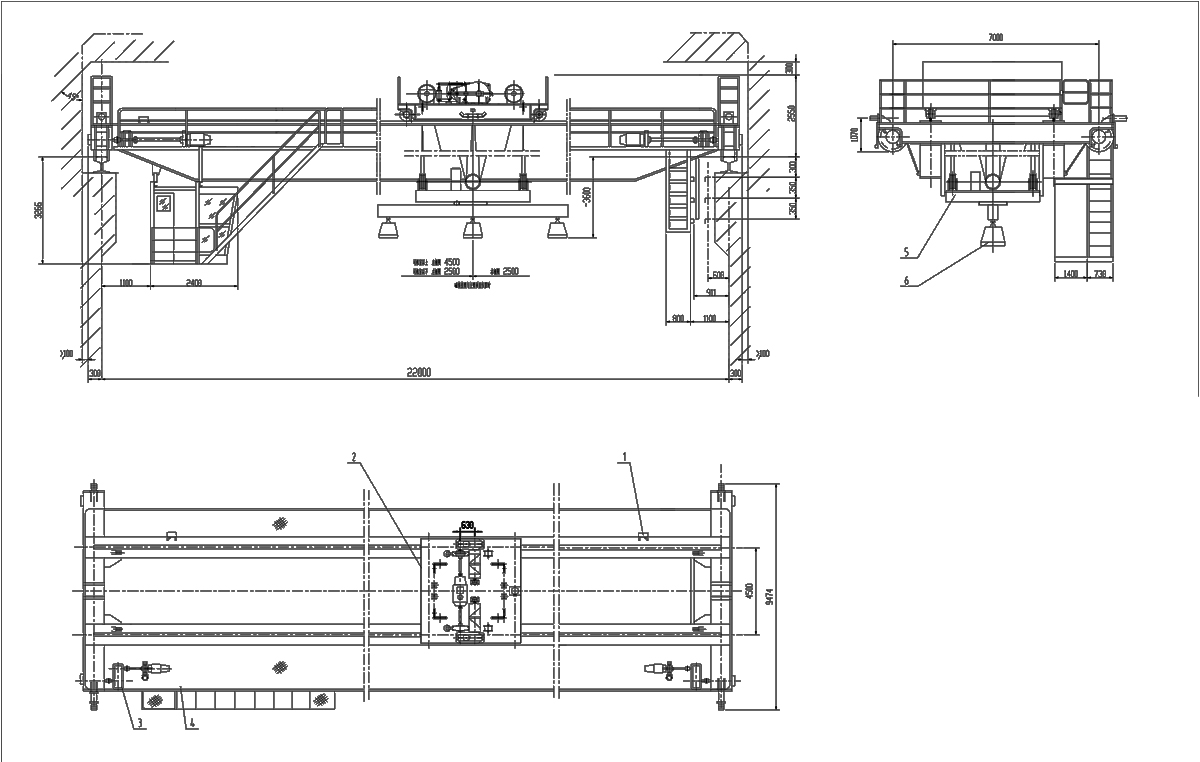

Schematic Drawing

product details

End beam
Buffer motor drive
With roller bearings and
permanent iubncation

Main beam
With strong box type and
standard camber
There will have
reinforcement plate inside

Magnetic Spreader
Strong suction, simple
operation, strong stability,
low energy consumption

Crane Trolley
1.High working duty hoist
mechanism.
2.Working duty:A3-A5
3.Capacity:3.2-32t.

Wire rope
Heavy bearing, strong and
durable, not easy to rotate,
not easy to break

Crane Cabin
1.Close and open type.
2.Air-conditioning provided.
3.Interlocked circuit breaker
provided.
