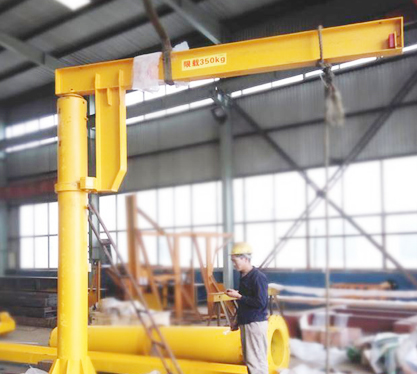

jib crane is a kind of light duty crane,which belongs to industrial machinery.This kind of jib crane is suitable to work in the dock, warehouse, workshop, terminals and other fixed working locations.
jib crane consists of column,rotation motor,cantilever,electric hoist and so on.It is characterized as light wight,wide span,heavy loading and low cost.
Column is fixed on the base of concrete and cantilever can rotate during 360 degree according to operators' requirements.Cranes' rotation force can be electric power and human force.The electric hoist is mounted on the cantilever track for lifting heavy objects.
Features and Advantages：
Simple structure, convenient operating methods, agile turning movement and widely working conditions.
Self- standing, manual or electric control.
Small and medium-size lifting equipment, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving and flexible.
We will reply you as soon as possible after getting your inquiry of our jib crane.
Your product can be maintained by our professional engineers within two years free of charge.
Product Parameter：
| Jib Crane Technical Data |
| Model |
|
BZ0.5 |
BZ1 |
BZ2 |
BZ3 |
BZ5 |
| Lift capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
| Max. horizontal throw |
m |
2.6 |
3.6 |
2.9-3.9 |
3.8 |
3.7 |
| Max. radius of gyration |
m |
3.6 |
4.5 |
4.5 |
5 |
5 |
| Max. overturning moment |
|
t/m |
3 |
6 |
12 |
18 |
27 |
| angle of Rotation |
|
degree |
180 |
|
|
|
|
| Lift speed |
normal |
m/min |
8 (4) |
|
|
|
|
| slow |
m/min |
0.8 (0.4) |
|
|
|
|
| Travel speed |
|
m/min |
20 |
|
|
|
|
| angle of Rotationspeed |
|
m/min |
1 |
0.75 |
0.7 |
0.9 |
0.6 |
Schematic Drawing:
