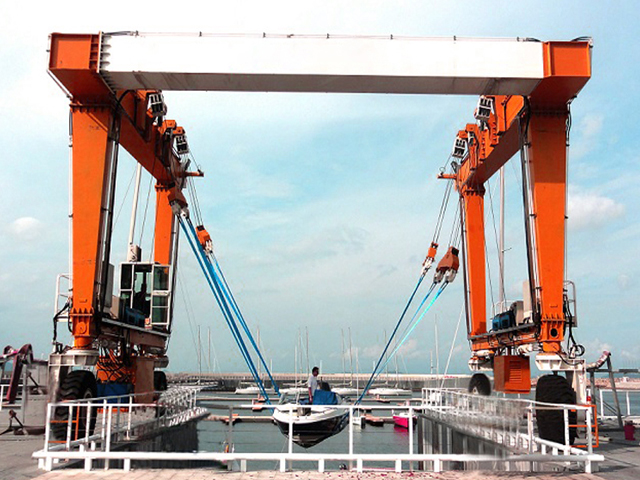

yacht boat crane

Capacity:5000-50000kg
Span:12-20m
Lifting height:6-9m
Lifting speed:8, 8/0.8/7, 7/0.7/3.5, 3.5/0.35m/min
Crab travel:10/15/20m/min

Product catalog

Product video

send email

chat now

Share With:

Product description

boat hoist yacht lifting gantry crane includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat yacht Crane can handling different tons boat or
yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new
boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.It also can put the boat in sequence quickly with small gap between each two boats.Electrical system uses PLC frequency adjustment which can easily control every mechanism.Control Methods: Cabin control / remote control or Cabin control + remote control.

Features and Advantages:

Automatic rectify deviation control

Weight overload protection device

Top quality polyurethane buffer

Phase protection

Lifting limit switch

Cross traveling limit switch

Long traveling limit switch

Voltage lower protection function

Emergency stop system

Current overload protection system

Lighting system

Light and alarm system

Product Parameter:

SWL(Kg)	Span (m)	Lifting Height (m)	Crab Travel(m/min)	Lifting Speed (m/min)	Steering mode	Steering angle
5000+5000 (2m)	12	6/9	10/15/20m/min	8, 8/0.8 Standard Speed	Hydraulic-2 Hydraulic-4
	16
	20
10000+10000 (2m)	12	6/9		7, 7/0.7 Standard Speed
	16
	20
20000+20000 (2m)	12	6/9		3.5, 3.5/0.35 Standard Speed
	16
	20
32000+32000 (1Am)	12	6/9		3.5, 3.5/0.35 Standard Speed
	16
	20
50000+50000 (1Am)	12	6/9		4 Standard Speed
	16
	20

Schematic Drawing:

Company advantages

	Hengyuan crane--Powerful
13 years of industry experience, with more than 500 modern production and testing equipment (sets), more than 650 employees, including experienced professional and technical personnel and more than 160 management talents who are well versed in the way of business.
	Hengyuan crane--International Certification
The company has successively passed the GB/T19001-2008/ISO9001:2008 international quality management system, GB/T24001-2004/ISO14001:2004 environmental management system, and GB/T28001-20011/OHSAS18001:2007 occupational health and safety management system certification.

Company strength

As a top crane innovation and production company, we not only offer top-quality crane for sale, but also provide reasonable purchase suggestion, safe crane package and professional installation guidance for worldwide customers. With the approval of SGS, CE and ISO certification, there is no doubt that our crane has reliable quality, wide application, standard performance and long lifespan.

Factory tour


Production site	Loading moment	Function Room

Product ready to ship	Staff canteen	Transport loading

product details

Traveling Mechanism
It can realize12 walking funcyions
as straight line,transverse line,
in-place rotayion and Ackerman
turning ect

Firm Belt
Low cost on the daily operation,
it adopts the soft and firm belt to
ensure there is no harm to the
boat when hoisting

Crane Cabin
The high-strength frame is by
high-quality profile,and the high-
quality cold rolling plate is finished
by the CNC machine

Main Car Hook
On a pair of main car hook,the
two main girder are set,but may
be alone and lateral movement
0-2m

Electrical System
Electrical system uses PLC
frequency adjustment which can
easily control every mechanism

Diesel Generator
It adopts all-hydraulic driving,
built-in diesel generator to
provide power,good liquidity
