L type gantry crane

Lifting capacity : 5ton to 32ton
Span : 12m to 30m
Lifting height : 6m, 9m, 12m, etc
Working duty : A5
Working temperature : -20°C to + 50°C.

Product video

send email

Get a quote

Share With:

Product description

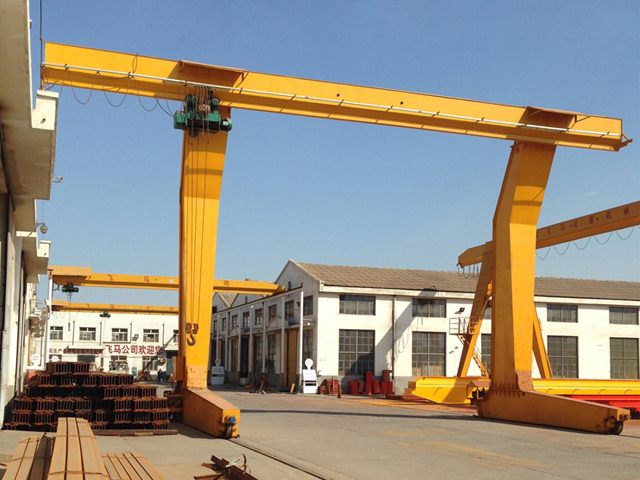

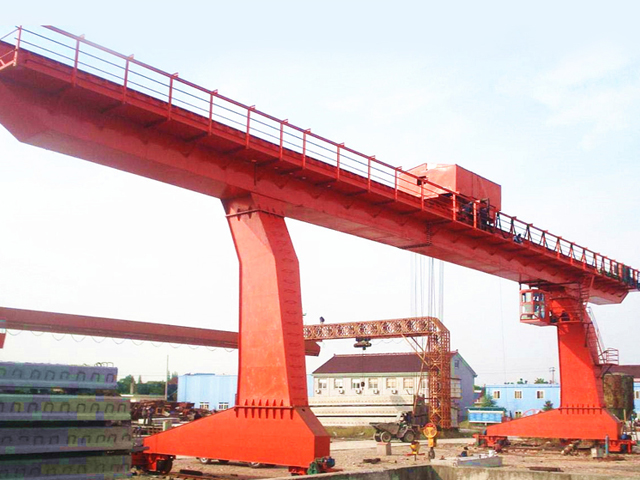

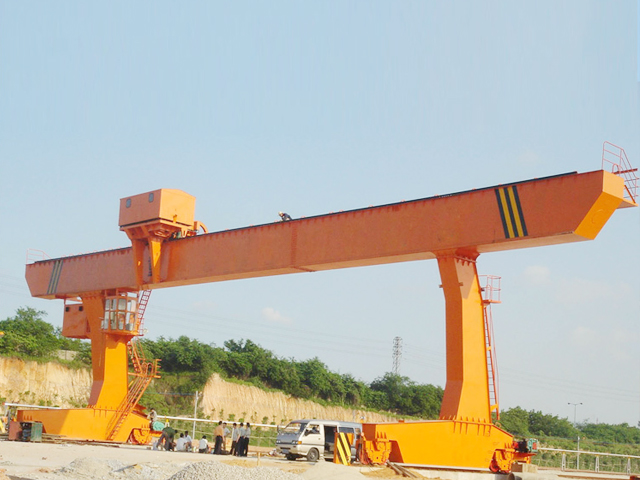

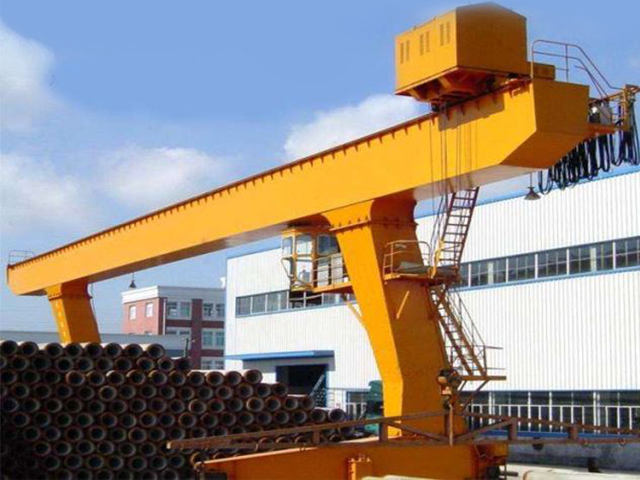

L type gantry crane is a box type single girder gantry crane, consists of four parts, for bridge frame, L(C) type supporting legs, electric trolley and crane traveling mechanism, and all electric equipment. The control method is cabin, remote control and pendent line. And generally for lifting steel ladles, tubes, or other long goods, the L shape structure is very convenient for electric trolley traveling and goods overturn.

Features and Advantages

Small size, good safety

Reasonable structure and favorable performance

Special for lifting and carriage long goods

All kinds Protection device, help to improve work efficiency

Product Parameter

Mechanism		Item	Unit	Result
Item
Lifting capacity	Main		ton	5					10					16					20					32
	Aux.													3.2					5					5
Span			m	18	22	26	30	35	18	22	26	30	35	18	22	26	30	35	18	22	26	30	35	18	22	26	30	35
Lifting Height	Main			11					12					12					12					12
	Aux.													18					12					12
working system				A5					A5					A5					A5					A5
Speed	Hoisting	Main	m/min	12.5					9.82					9.7					9.3					7.6
		Aux.												22.25					19.8					19.8
	Travelling of crab			39.5					40.4					39.7					39.7					38.6
	Travelling of trolley			46.2		39.5		40	39.5		40			39.5		40			39.5		48.3		48	49		54
power source			three-phase 380V 50HZ

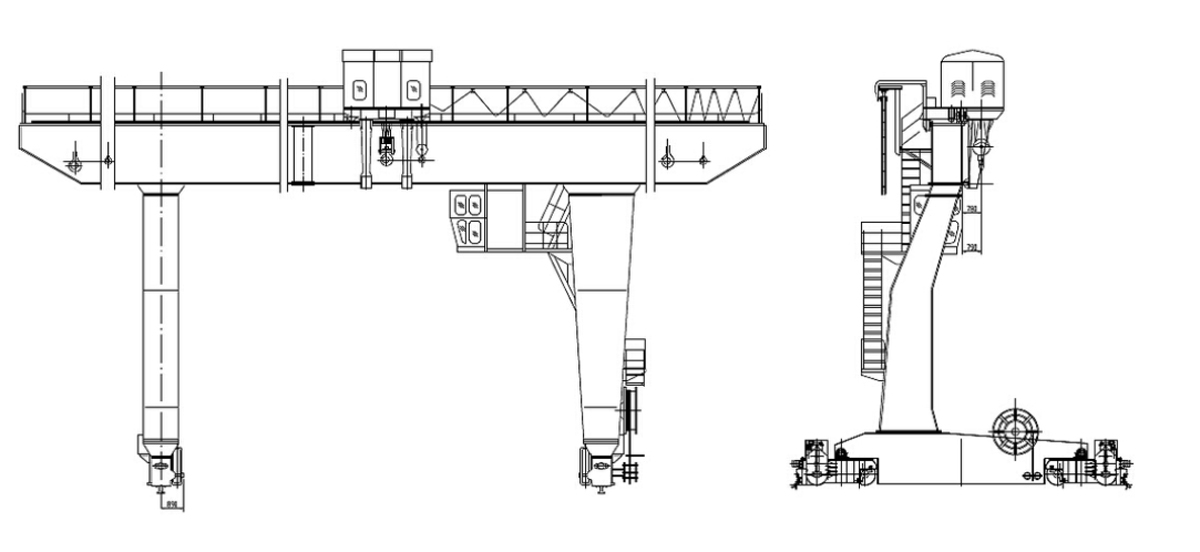

Schematic Drawing

product details

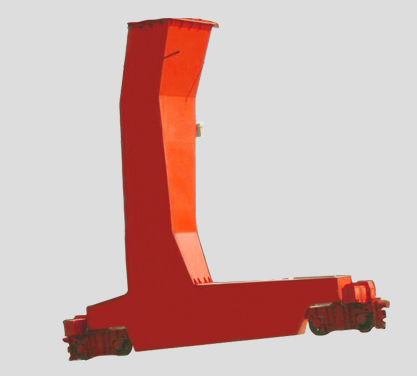

Crane Leg
1.Supporting effect
2.Ensure safety and stability
3.Improve the lifting characteristics

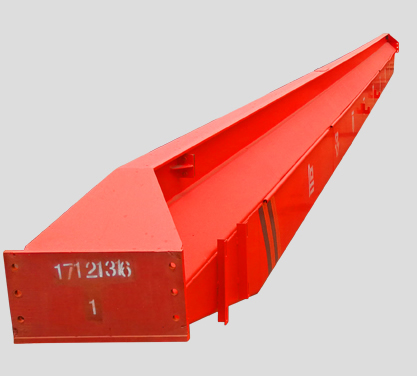

Main beam
with strong box type and standard
camber ,there will have
reinforcement plate inside

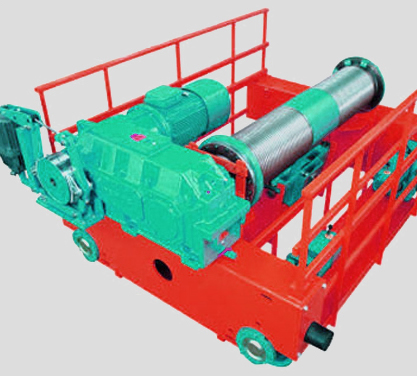

Crane trolley
1.High working duty hoist mechanism
2.Working duty:A5
3.Capacity:5-32t

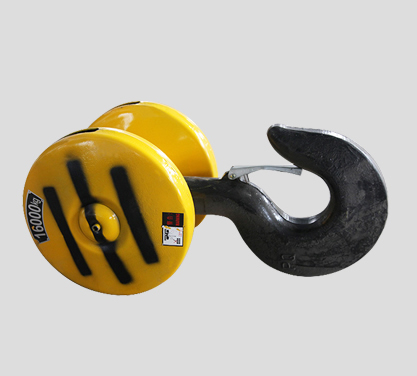

Crane hook
1.pulley diameter:Φ125/Φ160/
Φ209/Φ304
2.material:hook 35CrMo
3.tonnage:5-32t

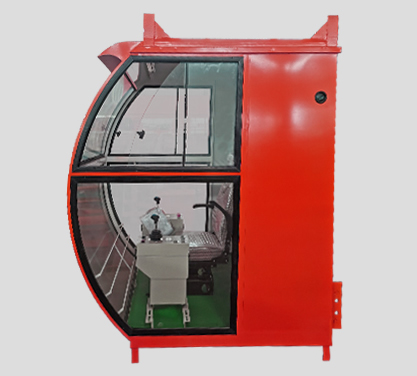

Crane cabin
1.cloth and open type
2.air-conditioning provided
3.interlocked circuit breaker provided
