european single girder overhead crane

Capacity:1-12.5t
Span:7.5-25.5m
Lifting height:6-12m
Lifting speed:5/0.8m/min
Cross travelling speed:2-20m/min
Long travelling speed:2-45m/mim

Product catalog

Product video

send email

Get a quote

Share With:

Product description

single girder eot crane manufacturer has the advantages of light weight, compact structure and low energy consumption, which is often composed by a European style hoist as its hoisting mechanism, the main beam, car running tracks, supporting beam and electrical parts. European style crane adopts unique design, which achieves material handling in three-dimensional space, and it also has small size, light weight and small wheel pressure, which is basically similar with our single girder bridge crane.

Compared with the traditional crane, this type of crane has longer lifting height, which can utilize workshop space at most, and it can save lots of original investment and labor work for investors. European style crane often consists of gantry crane, overhead crane, jib crane and port crane. More importantly, European style crane has reliable performance, low failure rate, lower usage and maintenance cost.

As a professional European style crane manufacturer, Hengyuan offer models of lifting equipment for sale, such as electric hoist, winch, gantry crane, overhead crane, container crane, jib crane, tower crane, launcher girder crane and so on. With high reputation and rich experience, our cranes for sale has passed CE, ISO and SGS certification, and they are very popular both in domestic and foreign market.

Features and Advantages：

Advanced control technology and high quality key components ensure good performance of our crane.

It has high availability and wide application range, which can cover the need of most of customers.

The crane has high automation degree, which is equipped with a variety of functional interfaces, and it is easy to expand its functionality.

Product Parameter：

Technical data
Crane Travelling Device	Travelling speed (m/min)		20	30	45	60	75
	Reducer ratio		58.95	39.42	26.38	19.37	15.88
	Motor	Model	ZDY21-4			ZDR12-4
		Power (kw)	2x0.8			2x1.5
		Rotation (r/min)	1380
Lifting device	Electric Hoist model		single/double speed
(Electric hoist)	Lifting speed (m/min)		8, 0.8/8
And hoist travelling device	Lifting height (m)		6, 9, 12, 18, 24, 30
	Travelling speed (m/min)		20 (30)
	Motor		Siemens
Work duty	A3- A4
Power supply	380V, 50Hz, 3-Phase or on your request
Rail type	P24/38

Schematic Drawing:

Company advantages

	Hengyuan crane--Powerful
13 years of industry experience, with more than 500 modern production and testing equipment (sets), more than 650 employees, including experienced professional and technical personnel and more than 160 management talents who are well versed in the way of business.
	Hengyuan crane--International Certification
The company has successively passed the GB/T19001-2008/ISO9001:2008 international quality management system, GB/T24001-2004/ISO14001:2004 environmental management system, and GB/T28001-20011/OHSAS18001:2007 occupational health and safety management system certification.

Company strength

As a top crane innovation and production company, we not only offer top-quality crane for sale, but also provide reasonable purchase suggestion, safe crane package and professional installation guidance for worldwide customers. With the approval of SGS, CE and ISO certification, there is no doubt that our crane has reliable quality, wide application, standard performance and long lifespan.

Factory tour


Production site	Loading moment	Function Room

Product ready to ship	Staff canteen	Transport loading

product details

End beam
Buffer motor drive
With roller bearings and
permanent iubncation

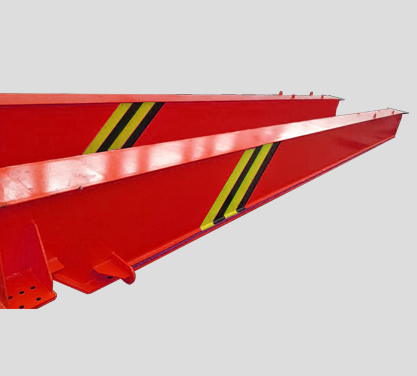

Main beam
With strong box type and
standard camber
There will have
reinforcement plate inside

European Hoist
Solid shell cover，Solid and
light,continuous,integral sealed
structure

Crane Hook
Pulley Diameter:Ø125/
Ø160/Ø209/Ø304
Material:Hook 35CrMo
Tonnage:1-12.5t

Wire rope
Heavy bearing, strong and
durable, not easy to rotate,
not easy to break
