rail mounted gantry crane

Capacity:30.5-350t
Span:18-50m
Lifting height:10-16m
Lifting speed:12-46m/min
Cross travelling speed:45-70m/min
Long travelling speed:45-100m/mim

send email

Get a quote

Share With:

Product description

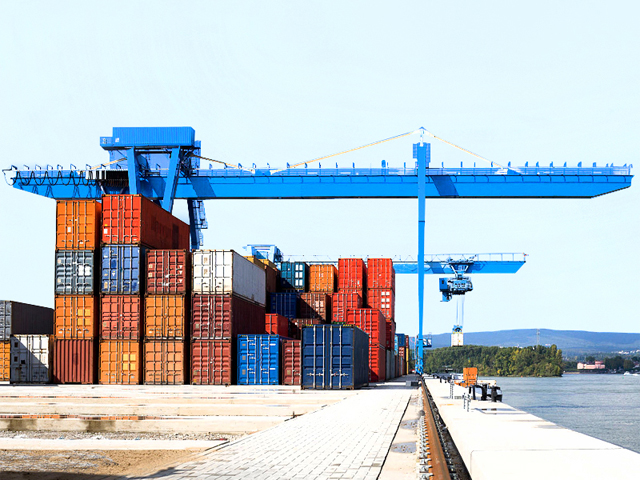

rail mounted gantry crane for sale is generally divided into rail type and rubber tyred gantry crane, which mainly goes for container handling, transporting and stacking. Container handling crane consists of the main girder, rigid and flexible legs, trolley, hoisting mechanism, running mechanism, electrical system etc. Mobile container crane can have single or double cantilever with different site layout and demand. Of course, there can be no cantilever for certain crane container if the original main girder meets delivering demand.
From the perspective of port container crane specifications, rail type portable container crane has lower car running speed than quayside container crane, which generally has no anti-rolling device. If users have requirements in the operation intensity and productivity, we can arrange anti-rolling device to meet this goal. Container crane for sale is generally arranged in the docks, ports or wharf, which can greatly simplify container loading process, improving working efficiency and reduce labor intensity.
Container crane is a type of large lifting machinery, and users should purchase or seek help from reliable container crane manufacturers. Hengyuan Group is an experienced lifting machinery manufacturer, and we always provide the most complete container crane dimensions and most reasonable container crane price for worldwide customers. From Hengyuan Group, users can get the matched container crane with high quality and minimum container crane cost. So, why not contact us if you in need?

Features and Advantages:

With CE, ISO and SGS certificates, users have no need to worry about product quality.

Our container crane for sale has various operation mode, such as remote control and cabin control.

Hengyuan container crane has compact structure, reasonable design and high performance.

Product Parameter:

1*	Crane Working Level	A7
2*	Rated Lifting Weight	36---50t Under Hoisting Device
3*	Rail Torque	18m
4*	Effective Hanging Arm	6.5m Both Sides
5*	Lifting Height	6--30m
6*	Max lifting Velocity	Full load12m/min,NO Load20m/min
7*	Gantry Traveling Velocity	Full Load≥55m/min
8*	Trolley Traveling Velocity	Full Load≥60m/min
9*	Trolley Slewing Velocity	1.01.5n/m
10*	Trolley Slewing Angle	-10°+190°
11*	Max Wheel PressIn The Worst Working Condition	≤25t
12*	Net Length Between Supporting Legs	≥7.6m
13*	Anti-shaking Device	Flexible Anti-shaking
14*	Hoisting Device	20ft 40ft 45ft,50ft Fixed Lead Board Liquid-press Flexibility
15*	Way To Power Supply	3-Phase 4Line Lead Power Supply: 380v/415v/440v 50Hz
16*	Maintenance Hoist	Rated Lifting Capacity 2t or 5t Meet Maintenance Required

Schematic Drawing:

Company advantages

	Hengyuan crane--Powerful
13 years of industry experience, with more than 500 modern production and testing equipment (sets), more than 650 employees, including experienced professional and technical personnel and more than 160 management talents who are well versed in the way of business.
	Hengyuan crane--International Certification
The company has successively passed the GB/T19001-2008/ISO9001:2008 international quality management system, GB/T24001-2004/ISO14001:2004 environmental management system, and GB/T28001-20011/OHSAS18001:2007 occupational health and safety management system certification.

Company strength

As a top crane innovation and production company, we not only offer top-quality crane for sale, but also provide reasonable purchase suggestion, safe crane package and professional installation guidance for worldwide customers. With the approval of SGS, CE and ISO certification, there is no doubt that our crane has reliable quality, wide application, standard performance and long lifespan.

Factory tour


Production site	Loading moment	Function Room

Product ready to ship	Staff canteen	Transport loading

product details

Main beam
With strong box type and
standard camber
There will have
reinforcement plate inside

Crane Trolley
1.High working duty hoist
mechanism.
2.Working duty:A3-A8
3.Capacity:30.5-350t

Container spreader
Reasonable structure, good
versatility, strong carrying
capacity, and can be
processed and customized

Crane Cabin
1.Close and open type.
2.Air-conditioning provided.
3.Interlocked circuit breaker
provided.
